40nm Premium RSX Swap / Replacement

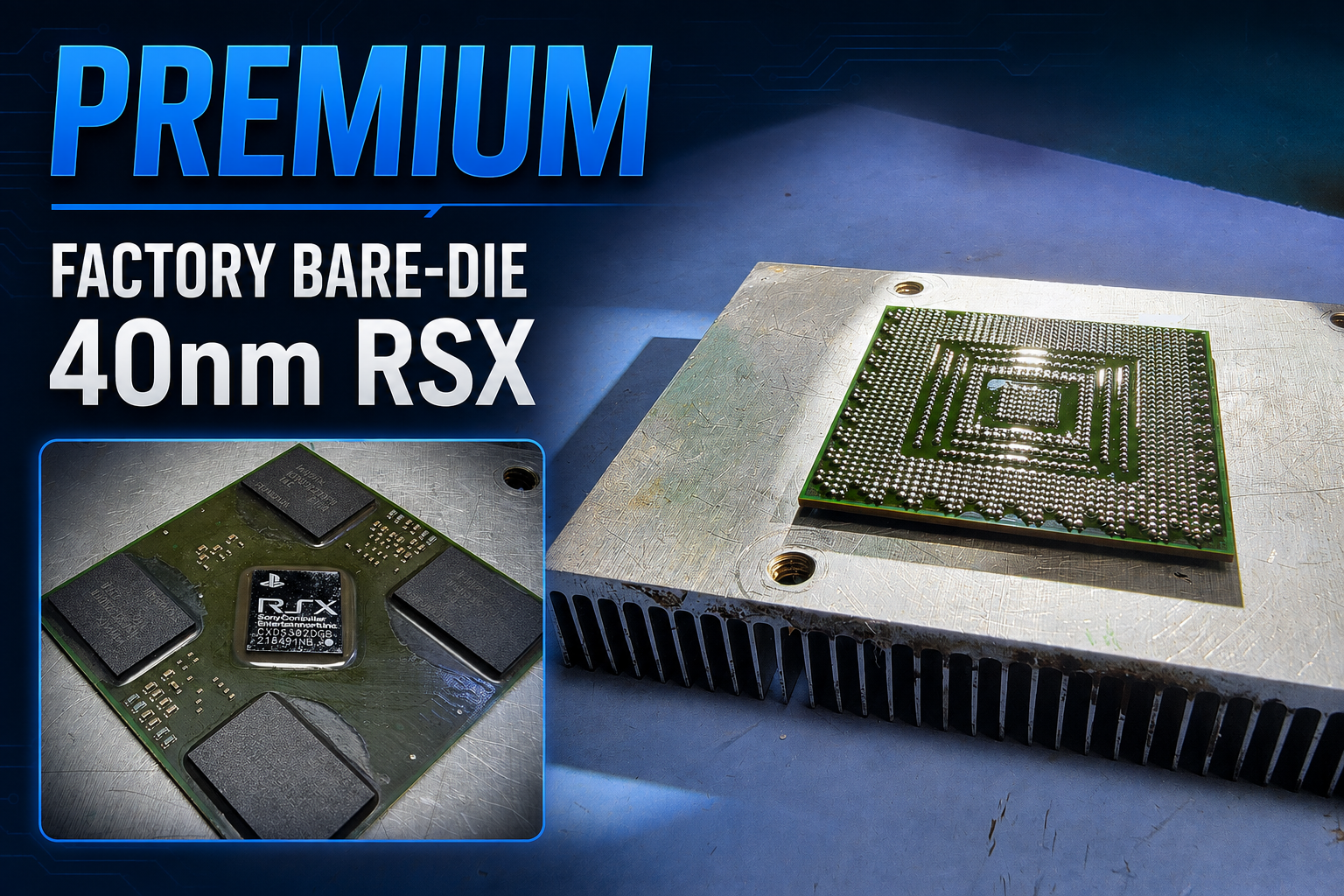

Our preferred PS3 Frankenstein RSX: Premium factory bare-die 40nm

The Premium factory bare-die 40nm RSX is our highest-tier and preferred Frankenstein GPU conversion for compatible backwards-compatible FAT PlayStation 3 systems.

Unless a console has a specific requirement for very low original firmware, native OtherOS-era compatibility, or another unusual restoration constraint, this is the RSX configuration we recommend over our standard 40nm and 65nm options.

It combines later-generation 40nm RSX silicon with something particularly valuable for a premium restoration: the replacement processor was manufactured bare-die from the factory.

There is no bonded RSX heat spreader that we have to mechanically remove from the replacement processor. The silicon is already exposed as part of Sony's original package design.

That gives us direct access to completely renew the critical die-to-IHS thermal interface while avoiding one of the procedures we dislike most on conventional 40nm RSX packages: mechanically delidding a perfectly good GPU.

What processor are we actually using?

Our Premium donor program targets selected early Super Slim PlayStation 3 hardware using MSX-001 and MPX-001 motherboard families equipped with the later CXD5302-series 40nm RSX.

This generation represents an unusual and extremely useful point in PS3 production: Sony retained the 40nm RSX architecture and four external VRAM devices but changed the processor package to a factory bare-die configuration.

• RSX generation: 40nm.
• Common processor family: CXD5302.
• Original donor platform: selected CECH-40xx Super Slim systems.
• Common donor boards: MSX-001 / MPX-001.
• RSX package: factory bare-die.
• Memory configuration: four external RSX VRAM devices.
• Approximate RSX die area: 114 mm².

We actively source compatible early Super Slim donor systems specifically for these processors and maintain dedicated bare-die RSX inventory for Premium Frankenstein restorations.

Donor origin alone does not automatically qualify a processor for customer use. Each candidate RSX must still pass our inspection and electrical evaluation before it is approved for installation.

Why 40nm is such a major change from the original 90nm RSX

The backwards-compatible launch PS3 was designed around an approximately 258 mm² 90nm RSX. Sony later moved through an approximately 186 mm² 65nm generation before eventually reaching an approximately 114 mm² 40nm RSX.

That is a major semiconductor-generation change.

The smaller process allows the later RSX to perform the same fundamental PS3 graphics workload at a substantially lower operating voltage and electrical load than the original launch-era GPU.

Less electrical power consumed by the RSX means less electrical energy ultimately has to become heat inside the console.

That reduction affects the entire thermal system:

• Less heat generated at the RSX silicon.
• Lower thermal load on the RSX heat spreader.
• Lower load on the heatsink and heat-pipe assembly.
• Less heat that must ultimately be removed by the fan.
• Reduced electrical demand on the motherboard RSX power circuitry.
• Reduced contribution of the GPU to total console power consumption.

This is why we do not view a Frankenstein conversion as simply replacing one dead GPU with another GPU. We are moving the console to a substantially later RSX generation.

Why Premium instead of the standard 40nm RSX?

Our standard 40nm Frankenstein conversion is already an excellent repair. It uses a conventional 40nm RSX from compatible Slim-era hardware and retains the IHS that Sony installed on that processor.

We leave that IHS installed intentionally.

We do not believe a healthy conventional 40nm RSX should automatically be mechanically delidded simply to gain direct access to the silicon.

The Premium version solves that problem before it even exists.

The CXD5302-series processor used for our Premium configuration was manufactured with the die already exposed. Nothing has to be cut, pried, separated or mechanically removed from the 40nm processor package.

No mechanical 40nm RSX delid

This is one of the biggest reasons we developed the Premium service.

A conventional 40nm Slim RSX can physically be delidded, but removing its bonded heat spreader introduces mechanical force into a very valuable multilayer semiconductor package.

The RSX assembly includes:

• The 40nm silicon die.
• A multilayer organic package substrate.
• Underfill and package support structures.
• Surrounding VRAM devices.
• Package traces and internal interconnections.
• Thousands of motherboard BGA connections beneath the package.

Applying bending, lifting or twisting force to this assembly simply to remove the heat spreader is not something we consider desirable during a premium long-term restoration.

What our X-ray inspection has shown us

Our position on 40nm delidding is not based only on theory.

We have used X-ray inspection to examine 40nm RSX packages after mechanical delid procedures and have observed package deformation and indications of mechanical stress that are not necessarily visible from the outside of the processor.

A delidded RSX can still boot and operate after the procedure. That does not automatically prove that no mechanical stress was introduced into the substrate, package structure or surrounding integrated memory area.

For that reason, successful power-on is not our definition of a successful long-term semiconductor modification.

If we can avoid introducing that stress entirely, we prefer to do so.

Factory bare-die eliminates the problem

The Premium 40nm processor requires no aftermarket RSX delid because Sony already manufactured the package with the silicon exposed.

That gives us:

• No mechanical IHS removal from the replacement 40nm RSX.
• No prying against the 40nm substrate.
• No unnecessary package flexing simply to expose the silicon.
• No need to disturb the surrounding RSX/VRAM package structure.
• Direct access to the die for inspection and cleaning.
• Direct access for a completely renewed die-level thermal interface.

Instead of taking a lidded processor and turning it into a bare-die processor, we start with the processor Sony manufactured that way.

Important: factory bare-die does NOT mean IHS-less operation

The finished FAT PS3 still requires an RSX heat spreader.

The Super Slim bare-die processor package is physically lower than the original lidded RSX assembly used in the backwards-compatible FAT PlayStation 3. The original FAT heatsink and heat-pipe assembly was designed around the height of an RSX fitted with an IHS.

We therefore clean, restore and reuse the original 90nm RSX heat spreader from the FAT PS3 above the new factory bare-die 40nm processor.

The Premium configuration is therefore not an attempt to run the FAT PS3 with its heatsink sitting directly on an unsupported RSX die.

Instead, we use the bare-die processor to completely renew the internal thermal interface and then rebuild the correct FAT PS3 thermal stack.

The Premium 40nm thermal stack

The completed RSX thermal path consists of:

• Factory bare-die 40nm RSX silicon.
• Fresh premium die-level thermal interface.
• Cleaned and restored original FAT 90nm RSX IHS.
• Fresh external thermal interface.
• Original FAT PS3 heatsink and heat-pipe assembly.
• System cooling airflow.

This allows us to combine the later Sony factory bare-die processor package with the substantial cooling hardware already present in the early FAT PlayStation 3.

Add PTM7950 for the Premium thermal configuration

Because the factory bare-die RSX gives us direct access to the silicon, this configuration is ideally suited to our optional PTM7950 phase-change thermal upgrade.

PTM7950 is installed at the internal die-to-IHS junction, placing the phase-change material directly between the exposed 40nm RSX silicon and the restored OEM heat spreader.

This is the exact interface that cannot be renewed without opening a conventional lidded RSX package.

With the Premium factory bare-die processor, we gain access to that interface without mechanically opening the replacement RSX at all.

For a customer already selecting the Premium 40nm RSX, PTM7950 is one of our strongest recommended add-ons.

Why we prefer this over mechanically delidding a standard 40nm

Our order of preference is very simple:

1. Factory bare-die 40nm RSX - our preferred Premium configuration.
2. Standard lidded 40nm RSX - excellent option when Premium is not selected.
3. 65nm RSX - preferred when low firmware or native OtherOS compatibility is required.
4. Mechanical or chemical-assisted 40nm delid - reserved for unusual circumstances where retaining a specific processor is necessary.

If a customer is already purchasing a 40nm Frankenstein conversion, we would generally rather put the additional money toward the factory bare-die processor than charge them to perform a higher-risk delid on a conventional 40nm RSX.

What about a chemically assisted 40nm delid?

There are unusual situations where retaining a specific conventional 40nm RSX may be desirable and access beneath its IHS becomes necessary.

In those situations, we can consider a chemical-assisted delid process designed to weaken the original bonding material and reduce the mechanical force required for separation.

That can reduce risk, but it cannot eliminate it.

For a normal Premium Frankenstein build, we see very little reason to accept that additional risk when a verified factory bare-die 40nm processor is available.

40nm Premium versus 65nm

A properly installed 65nm RSX is still an excellent Frankenstein processor and remains an important option in our service lineup.

But for a customer who does not require old firmware compatibility, we generally recommend the Premium 40nm instead.

The 40nm generation represents later RSX silicon with a smaller die and lower operating power, and our factory bare-die version gives us the additional benefit of completely renewing the internal die-level thermal interface without opening the processor package.

That combination is why the Premium 40nm has become our preferred overall Frankenstein configuration.

When we recommend the 65nm instead

There is one major reason we may deliberately recommend a 65nm RSX instead of the Premium 40nm: low firmware compatibility.

Later RSX generations require firmware and system software that understand and correctly initialize those processor revisions. For our normal 40nm conversions, we treat firmware 3.55 or later as the safe compatibility floor unless specific additional firmware work has been evaluated.

That normally presents no disadvantage for a customer running a modern official firmware or current custom firmware.

It does matter to collectors who intentionally want to preserve a console on much older system software.

Native OtherOS is the important exception

Original Sony OtherOS functionality belongs to the early PS3 firmware era and was removed from retail firmware after the 3.20 generation.

A customer specifically building a period-correct machine around native Sony OtherOS support may therefore need to remain on firmware too old for us to recommend a normal 40nm conversion.

That is where the 65nm Frankenstein option becomes valuable.

The 65nm RSX has compatibility with earlier PS3 software generations than the 40nm RSX and is therefore the processor we would normally discuss with a customer whose restoration requires native low-firmware or OtherOS-era operation.

In other words:

• Want the best overall modern Frankenstein configuration? Premium factory bare-die 40nm.
• Want a standard lower-cost Frankenstein conversion? Standard lidded 40nm.
• Need native low-firmware / OtherOS-era compatibility? Talk to us about 65nm.

We select the RSX around what the customer actually needs the console to do rather than pretending one processor is correct for every restoration.

Firmware is checked before the conversion

The RSX is not an independent component that can be changed without considering the rest of the PlayStation 3 platform.

Before performing a Premium 40nm conversion we consider:

• Console model.
• Motherboard revision.
• Installed firmware level.
• NAND/NOR configuration.
• SYS_CON information and fault history.
• RSX initialization compatibility.
• Previous rework or repair history.
• Condition of the BGA pad field.
• Condition of the motherboard power rails.
• Customer requirements for firmware, CFW or OtherOS.

If the failed console cannot boot far enough to verify its installed firmware normally, additional diagnostic or flash-level procedures may be required before the final RSX configuration is approved.

The RSX requires more than BGA installation

A 40nm Frankenstein conversion is not simply a matter of soldering a later GPU onto an older motherboard.

The different RSX generations require the console to be correctly configured for the replacement silicon.

The completed conversion includes the required motherboard and system configuration necessary for the FAT PS3 to initialize and operate the later RSX revision, including the appropriate RSX voltage configuration and processor initialization environment.

We then test the completed system as a complete electrical and thermal assembly rather than considering the job complete simply because video appears on the screen.

Required 40nm voltage configuration

The 40nm RSX was designed for a substantially lower core-voltage environment than the original 90nm processor.

Correct RSX voltage configuration is therefore a fundamental part of the Frankenstein conversion itself.

This should not be confused with our optional CELL/RSX undervolting service.

Conversion voltage configuration establishes the correct electrical operating environment required by the later processor.

Optional undervolting goes further by individually optimizing CELL and RSX voltage to reduce additional power and heat while maintaining system stability.

Our donor qualification process

We do not assume that every processor removed from a Super Slim donor automatically belongs in a customer's backwards-compatible PS3.

Candidate Premium RSX processors are inspected and electrically characterized before installation.

Processors showing abnormal electrical characteristics, physical damage, questionable package condition or other readings outside our accepted donor criteria are removed from Premium inventory.

That qualification process matters because a Frankenstein conversion is far too labor-intensive to justify installing a questionable donor processor simply because it happens to be the correct part number.

Used versus NOS Premium 40nm

We offer both qualified used and NOS Premium 40nm processors when inventory is available.

Used Premium: factory bare-die 40nm silicon recovered from qualifying donor hardware, inspected, electrically evaluated, professionally prepared and reballed before installation.

NOS Premium: unused factory bare-die 40nm inventory for customers who want the highest-tier processor sourcing option when available.

Both receive the same BGA preparation, electrical configuration, thermal restoration and post-installation testing. The difference is the history of the replacement processor itself.

Why not 28nm?

Sony continued shrinking the RSX after 40nm, eventually moving to a 28nm design in later Super Slim hardware.

However, semiconductor process size alone does not determine whether a processor is suitable for a Frankenstein conversion.

The later 28nm RSX changed the package and memory architecture, including a different VRAM configuration. Frankenstein compatibility depends on electrical, package, initialization, firmware and memory architecture requirements - not simply choosing the smallest number printed next to "nm."

For the established FAT PS3 Frankenstein architecture, 40nm remains the later-generation RSX platform we prefer.

Premium 40nm versus the other options

Build the rest of the console around it

The Premium RSX is the centerpiece of the build, but long-term restoration means looking beyond one processor.

Our complete Premium configuration can combine:

• Factory bare-die 40nm RSX: our preferred replacement GPU platform.
• Restored original RSX IHS: maintains the correct FAT PS3 heatsink geometry.
• PTM7950: premium phase-change interface directly between the exposed RSX silicon and restored IHS.
• CELL delid: renews the aging internal CELL thermal interface when appropriate.
• CELL/RSX undervolting: further reduces electrical power and heat while maintaining tested stability.
• APS-226 or optimized APS-231 PSU: matches the power supply strategy to the finished electrical configuration.
• 19-blade fan: provides our preferred cooling-to-noise configuration.
• Thermal Grizzly Minus Pad Extreme 2: premium replacement for secondary thermal interfaces when required.
• CELL + RSX ASA bracers: provides additional motherboard support without intentionally increasing processor pressure.

The result is not simply a PS3 that has had its graphics chip replaced. It is a complete restoration strategy addressing semiconductor generation, electrical load, thermal transfer, airflow, power delivery and mechanical support.

Best for

• Premium CECHA01, CECHB01, CECHE01 and other compatible FAT PS3 Frankenstein restorations.
• Customers who want our preferred overall RSX configuration.
• High-value backwards-compatible consoles intended for regular long-term use.
• YLOD, GLOD, no-video, freezing and other confirmed RSX/GPU failure cases.
• Customers who want a completely renewed RSX die-level thermal interface.
• PTM7950 Premium thermal builds.
• Customers who specifically want to avoid mechanically delidding a replacement 40nm RSX.
• Collectors who want the later-generation 40nm solution and do not require native low-firmware OtherOS compatibility.

When this is NOT the right option

Premium does not mean universally correct.

If preserving a historically significant firmware installation or native Sony OtherOS-era functionality is part of the customer's goal, we may recommend a 65nm RSX instead.

Likewise, unusual motherboard condition, previous rework, firmware state or diagnostic findings can change the correct repair path.

We would rather install the processor that fits the purpose of the console than sell the most expensive option regardless of the customer's requirements.

Our recommendation

If there is no low-firmware requirement preventing us from using it, the Premium factory bare-die 40nm is the Frankenstein RSX we would choose.

It gives us later-generation 40nm silicon, factory access to the die, a completely renewable internal RSX thermal interface and the ability to use our restored OEM FAT heat spreader without ever mechanically delidding the replacement processor.

The standard lidded 40nm remains an excellent lower-cost option. The 65nm remains extremely valuable when firmware compatibility requires it.

But for a customer asking us to build the most complete long-term backwards-compatible PS3 we currently offer, this is where we start.

Factory bare-die 40nm RSX. No unnecessary 40nm delid. Fresh die-level thermal interface. Original FAT cooling geometry. Later-generation silicon.
